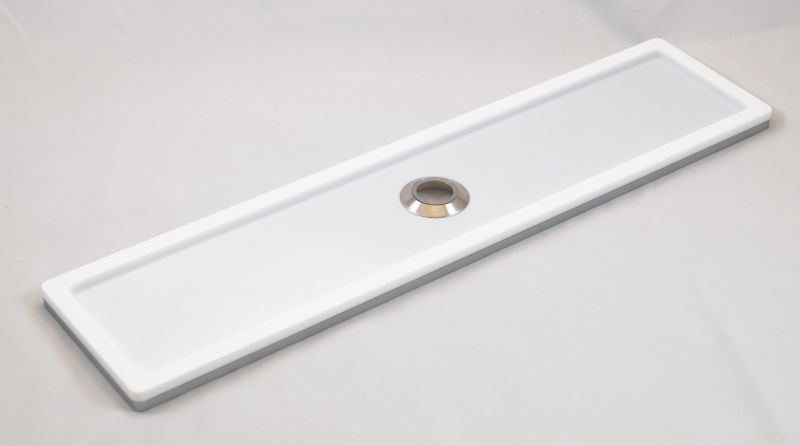

Microscopy Trough G2

Langmuir trough with a window for inverted microscopy.

Description

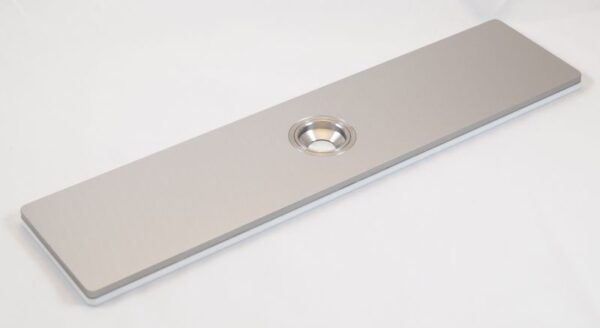

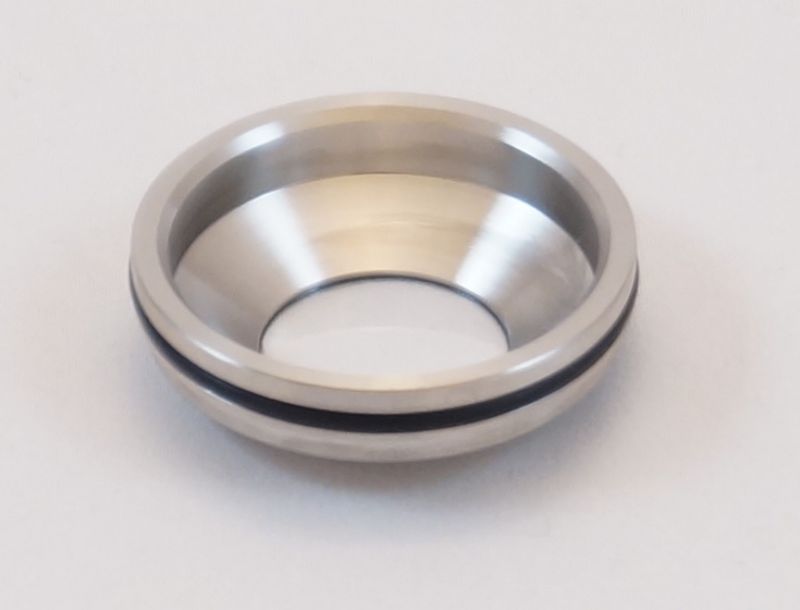

This trough is made from a solid piece of PTFE bonded on a rigid aluminum support. The trough has an interchangeable window adapter (stainless steel) with a 20 mm quartz window with 0.5 mm thickness. Other window materials and sizes available on request. Requires a microscope with a minimum focal length of 1 mm.

Specifications

Inner dimensions:

Volume:  162 ml
Length:  405 mm (max compression length, 350 mm)
Width:  80 mm
Depth:  5 mm
