LayerX (90)

Small programmable dipper for stand alone use or used with Microtrough instruments. Motion range 90 mm.

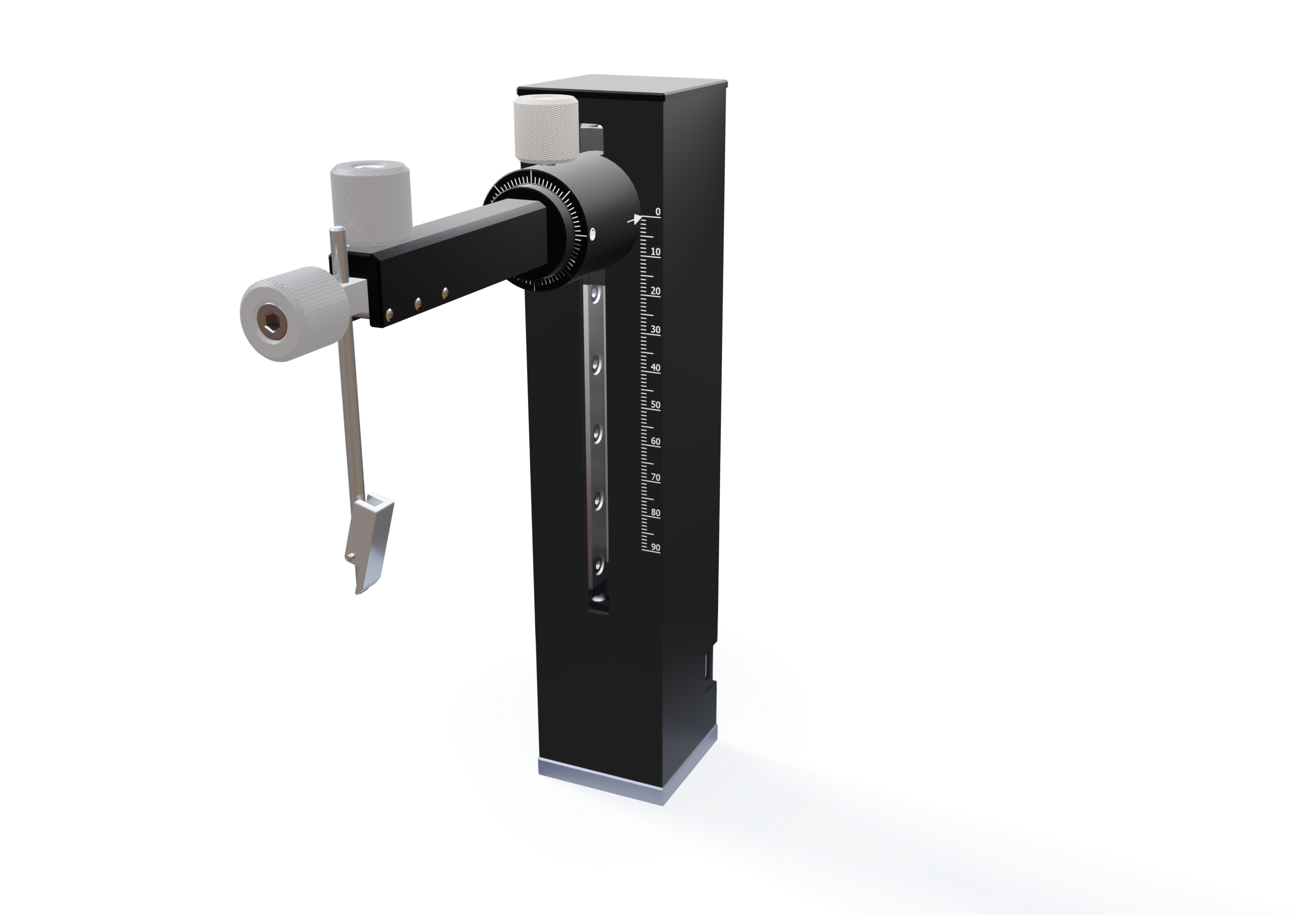

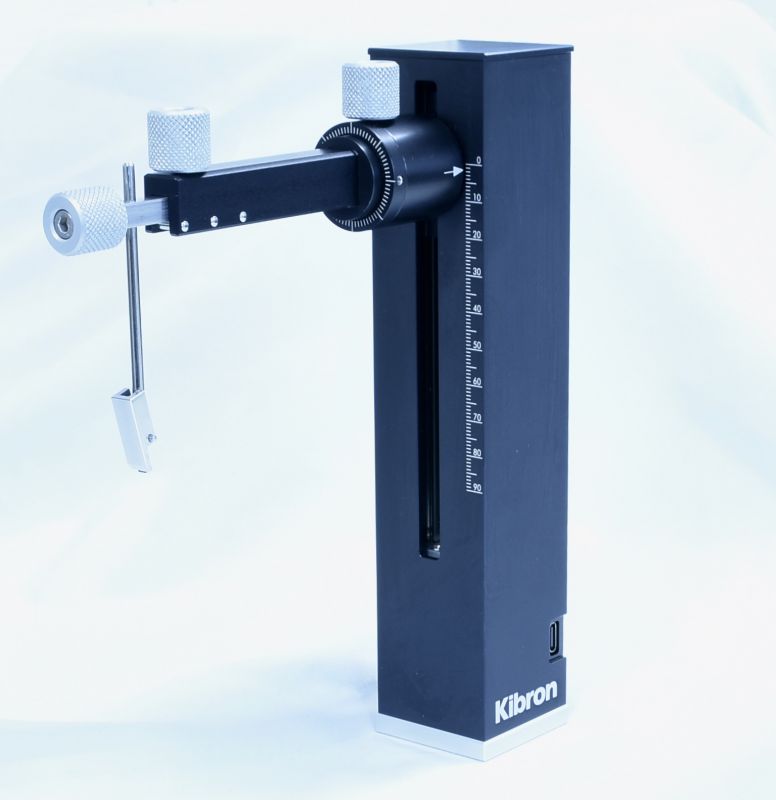

Kibron LayerX (90) is a precision dip coating equipment for the deposition of thin films on different substrates. It can be used as a standalone unit or integrated into the Kibron MicrotroughG environment (Breadboard std). The LayerX is interfaced and powered via a USB connection and is controlled by a dedicated MSWindows software. The software has a wide range of ready commands as well as a script language for programming. The software also interfaces to the Microtrough control electronics for event based control – you can for example detect when the substrate touches the liquid surface by following the surface pressure sensor and subsequently change operation of the dipper.

The base support has M6 mounting holes for anchoring on the Microtrough G1, G2 and G4 baseplates, or on standard optical breadboard. The dipper is delivered with clamps for both Langmuir-Blodgett and Langmuir-Schaeffer deposition.

Various clamps and arms are available here.


Product code Description
#6551 LayerX Pro (90) Dip coater
#1513 USB C-Cable
#3521 LB clamp
#3523 LS clamp (vacuum)
#1520 Software & Users guide on a USB pen drive


Dipping range: 90 mm
Speed range: 0.0015 – 225 mm/min
Weight: 0.5 kg
Dimensions H x W x L: 200 mm x 40 mm x 40 mm (dipper arm excluded)
Power supply: USB 5 V
Maximum sample load: 200 g
