LayerX (175)

Powerful computer controlled dip Coater. Can be used separately or interfaced to a Microtrough.

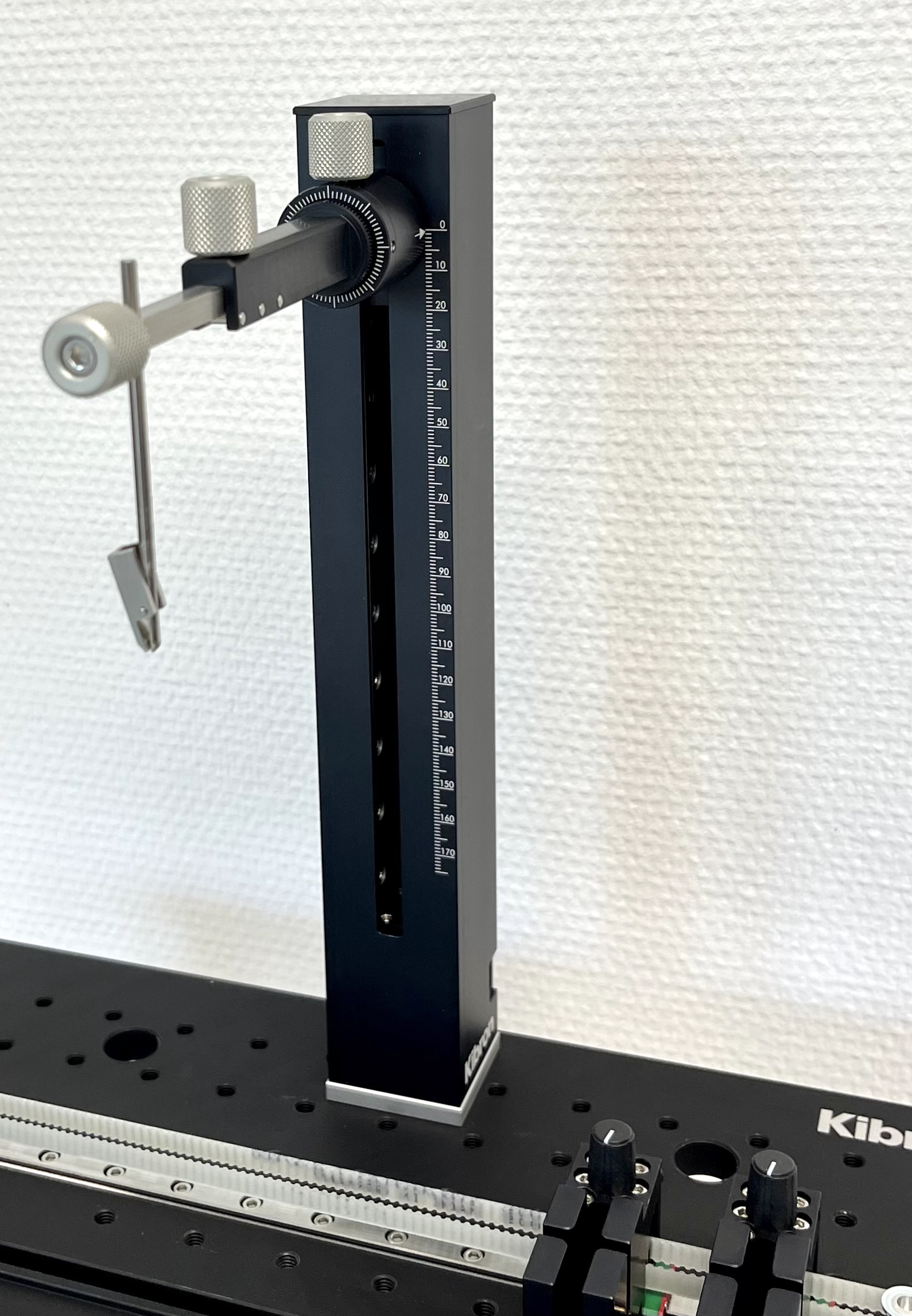

Base: the dip coater can be standalone or attach to the Microtrough Gx or any 25 mm x 25 mm M6 breadboard standard. On the attachment for Microtrough Gx M5 screws are tightened from below the baseplate.

Description

Kibron LayerX is a precision dip coating equipment for the deposition of thin films on different substrates. It can be used as a standalone unit (Microtrough X) or integrated into the Kibron Microtrough Gx environment (Breadboard std). The LayerX Pro is interfaced and powered via a USB connection and is controlled by a dedicated MSWindows software. The software has a wide range of ready commands as well as a script language for programming. The software also interfaces to the Microtrough control data for event based control – you can for example detect when the substrate touches the liquid surface by following the surface pressure sensor and subsequently change operation of the dipper.

The base support has M6 mounting holes for anchoring on the Microtrough G2 and G4 baseplates, or on standard optical breadboard. On the attachment for Microtrough Gx M5 screws are tightened from below the baseplate. When used with Microtrough XS the dipper is on a separate stand.

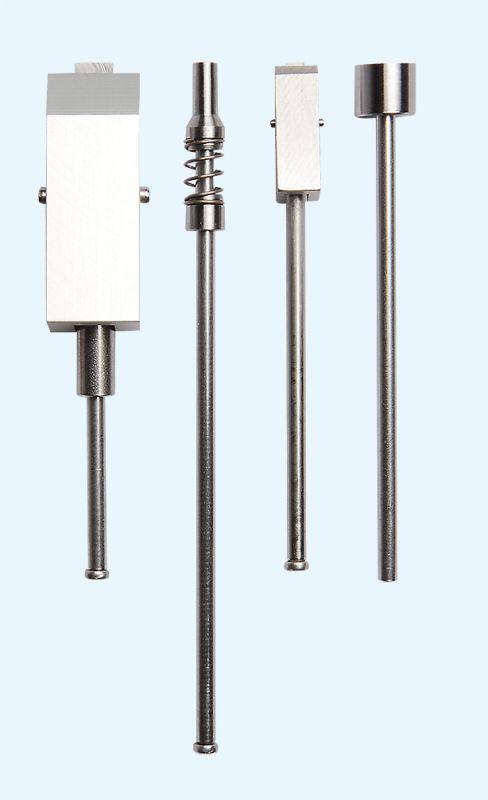

The dipper is delivered with clamps for both Langmuir-Blodgett and Langmuir-Schaeffer (version with suction cup) clamps.

Various clamps and arms are available. Please see Related products.

Content

Product code Description
#6550 LayerX Pro (175) Dip coater
#1511 Interface cable (USB)
#6655 LB clamp
#6656 LS clamp (suction)
#1520 Software & Users guide on a USB pen drive

Specifications

Dipping range: (*) 175 mm
Speed range: 0.0015 – 225 mm/min
Weight: 1.5 kg
Dimensions H x W x L: (**) 285 mm x 40 mm x 40 mm
Power supply: USB 5 V
Maximum sample load: 500 g

*) optionally 250, please make separate inquiry info@kibron.com

**) New foot print dimensions reduced to 75 mm x 75 mm when attached to a G1, G2 or G4
