Langmuir Trough G1, L/L (w/o interface)

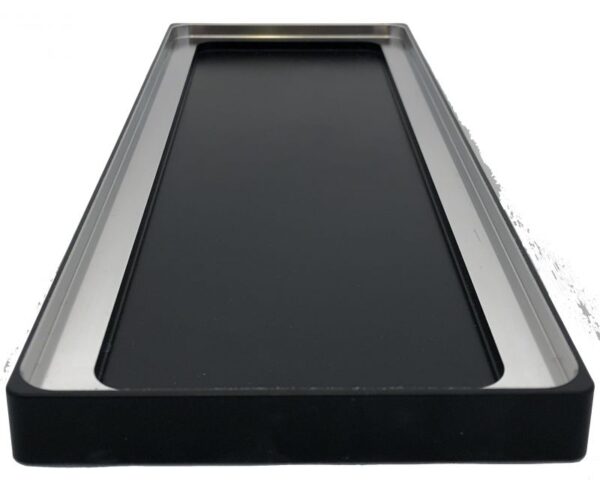

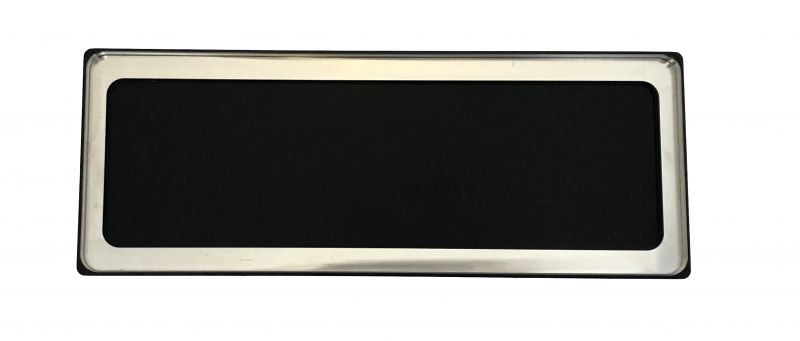

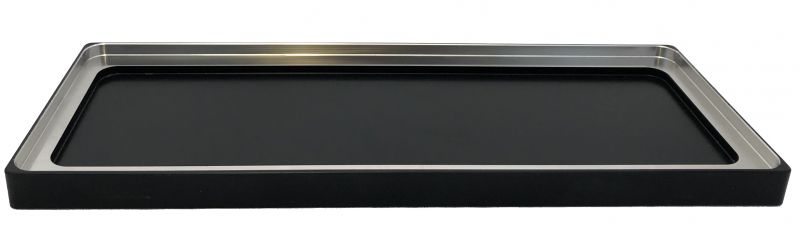

Liquid/Liquid (“water-on-top”) Langmuir trough for Microtrough G1. This trough is designed to be used with special L/L barriers with hydrophobic surface (=PTFE) towards the non-polar phase (eg.oil) and hydrophilic (=stainless steel) towards the polar phase (eg.water).

Specifications

The trough is machined from a solid block of stainless steel (hydrophilic) coated with PTFE (hydrophobic).

Inner dimensions:

Volume: 248 ml
Length: 275 mm (max compression length, 201 mm)
Width: 80 mm
Depth: 9,8 mm (non-polar 3,9 mm : polar 5,9 mm)
