Langmuir Trough G1, L/L (o/w interface)

Liquid/Liquid (“oil-on-top”) Langmuir trough for Microtrough G1. The trough can also be used for air-water experiments. This trough is designed to be used with special L/L barriers with hydrophilic surface (=stainless steel) towards polar phase (eg.water) and hydrophobic (=PTFE) towards the non-polar (eg.oil).

Specifications

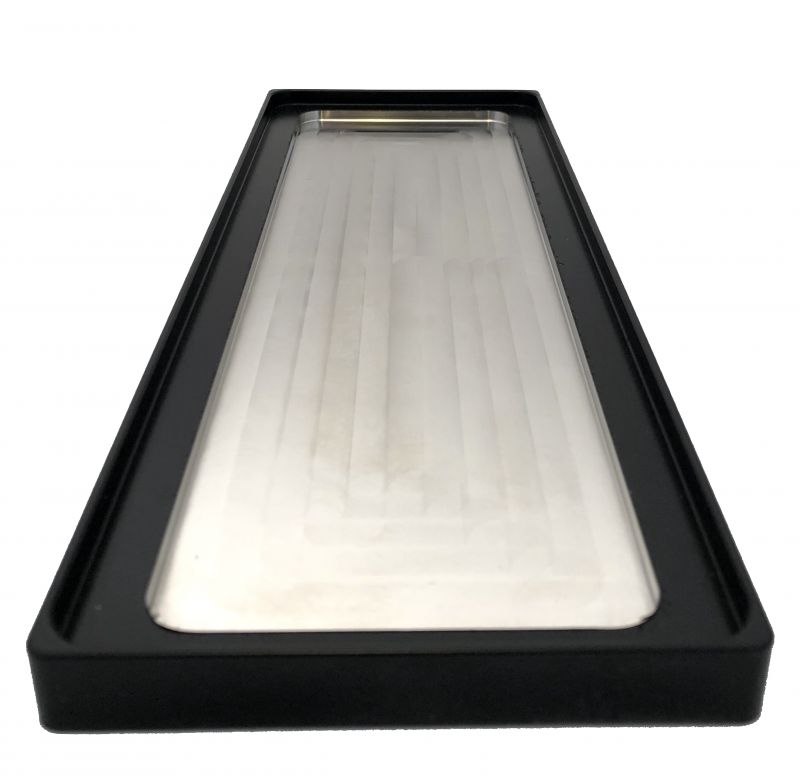

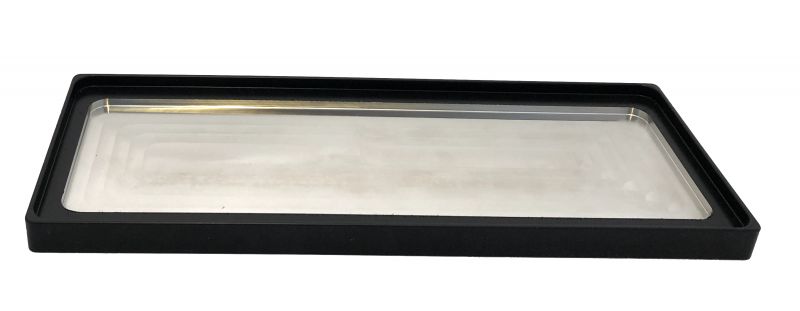

The trough is machined from a solid block of stainless steel (hydrophilic) with edges coated with PTFE (hydrophobic).

Inner dimensions:

Volume: 248 ml
Length: 275 mm (max compression length, 201 mm)
Width: 80 mm
Depth: 9,8 mm (polar 3,9 mm : non-polar 5,9 mm)
